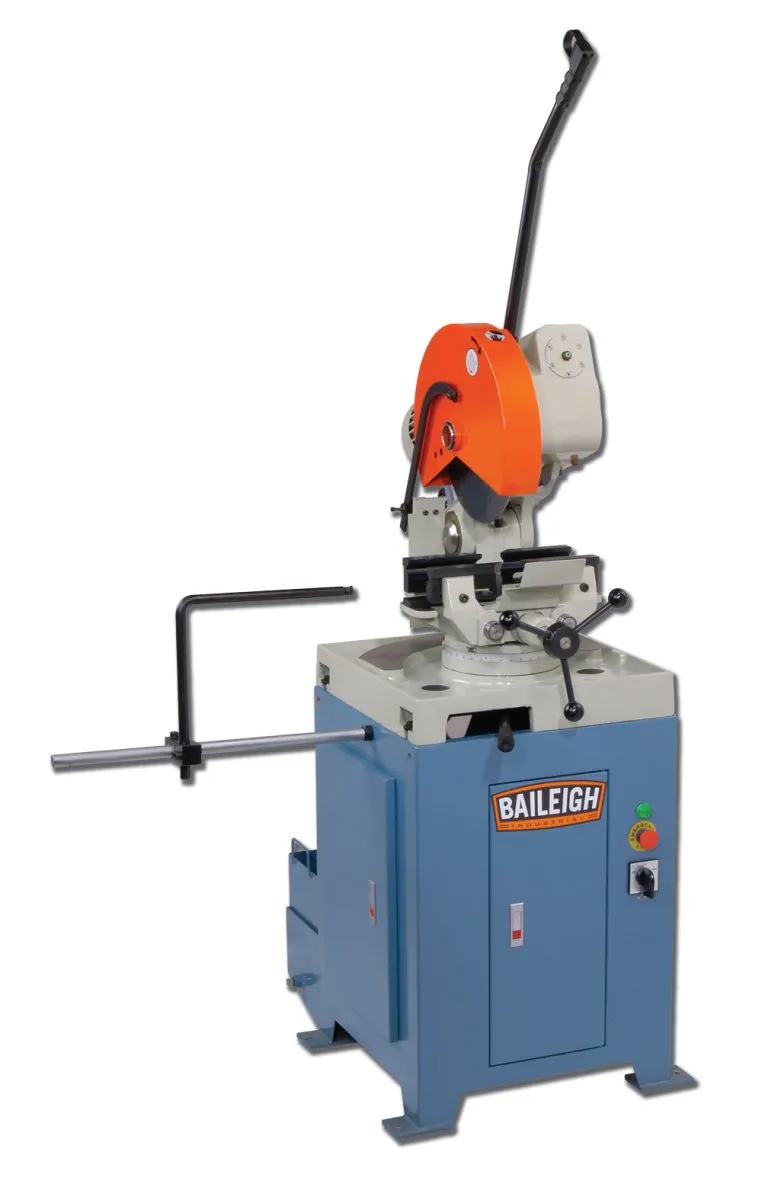

The CS-350M metal cutting saw is the best cold saw on the market for its price. It makes pristine cuts and includes features you won’t find on competing saws, like a self-centering vise and coolant system.
- Accepts a 14” blade.
- 4.25” round tube capacity at 90°.

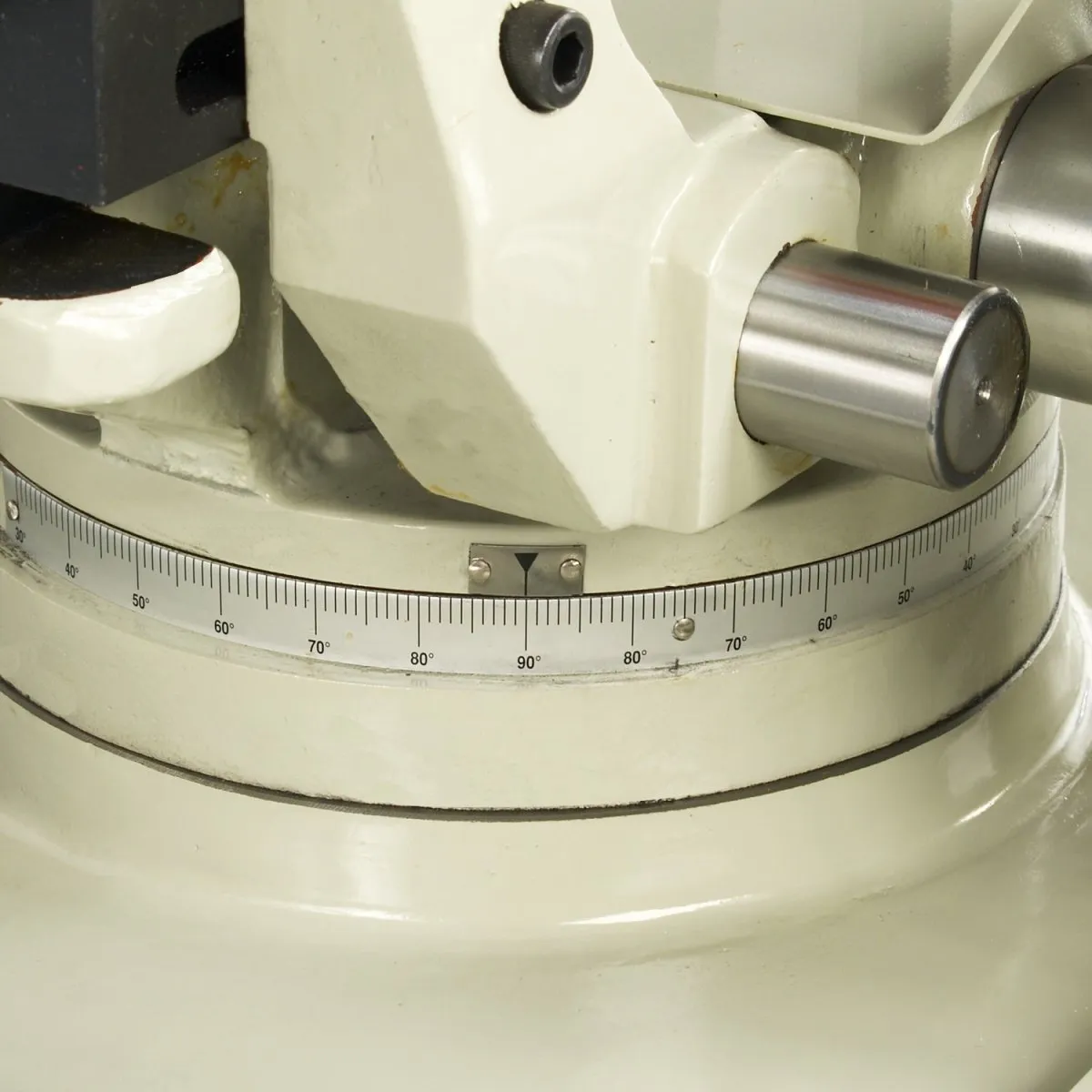

- Miters 45° right and 90° left, perfect for slotting applications.
- 2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials.
- Robust 4 hp motor runs on 220-volt 3-phase power.
- All-metal gears in direct-drive head are ground and hardened for reliability.

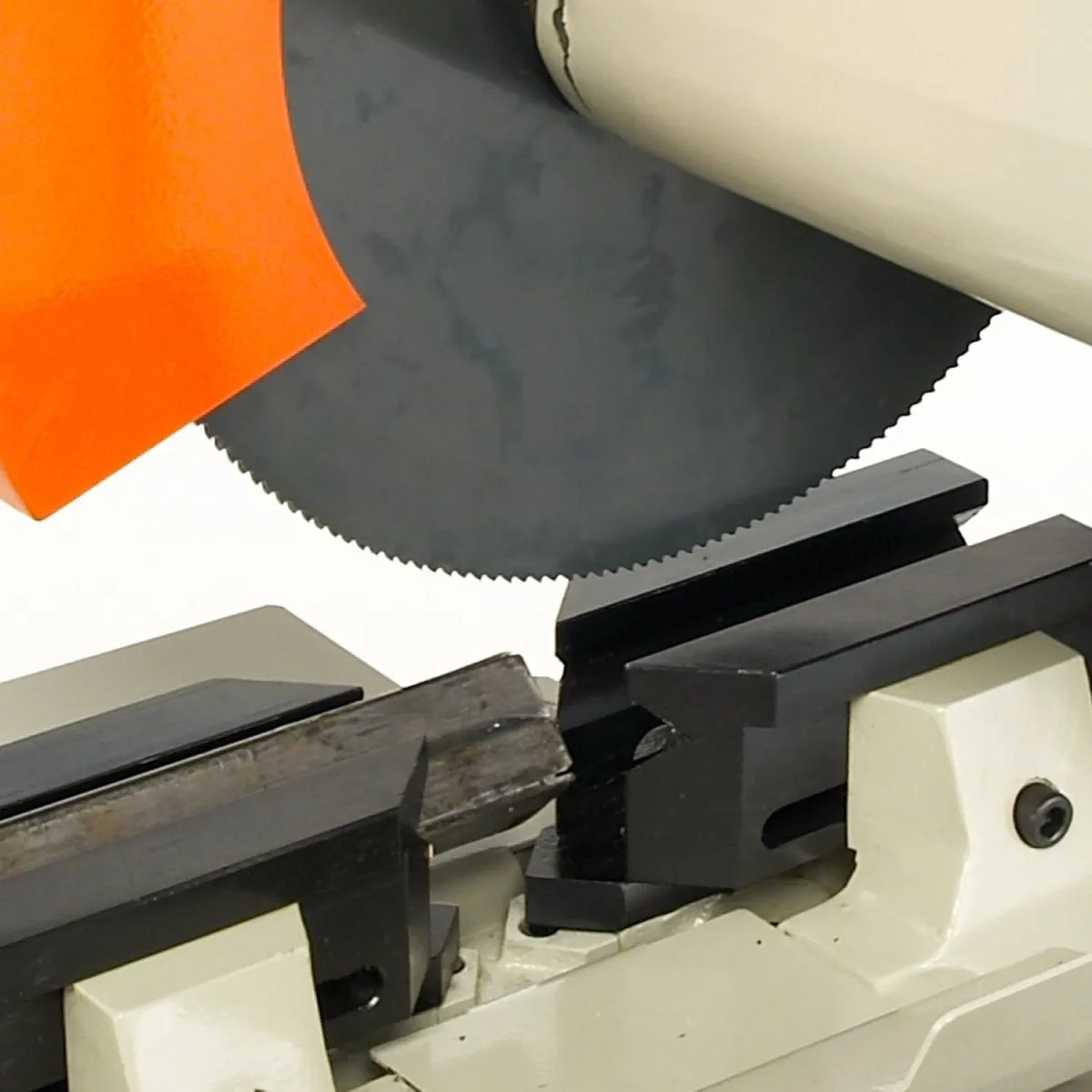

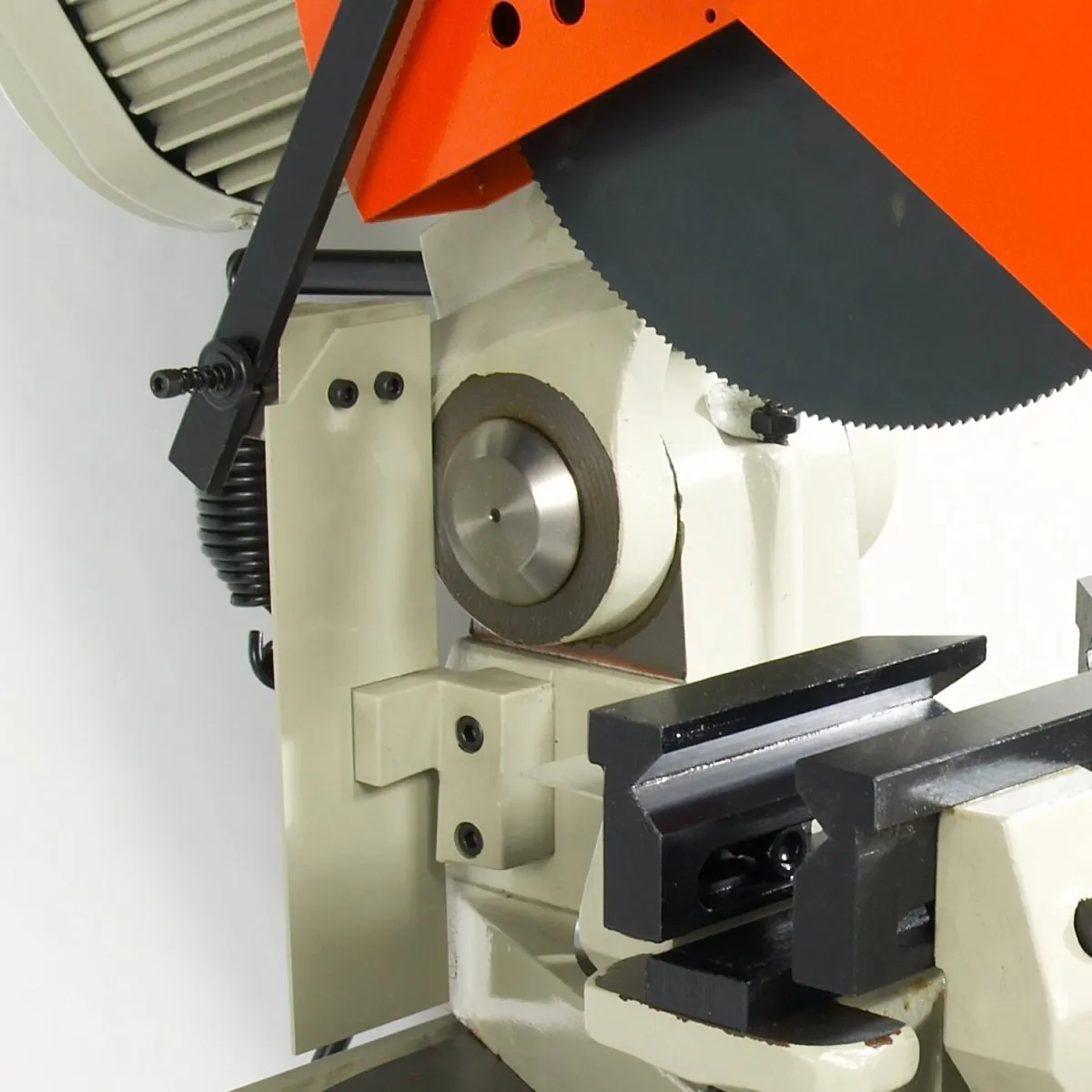

- American-style vise keeps the material perfectly centered with the blade for clean, correct cuts.
- Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum.

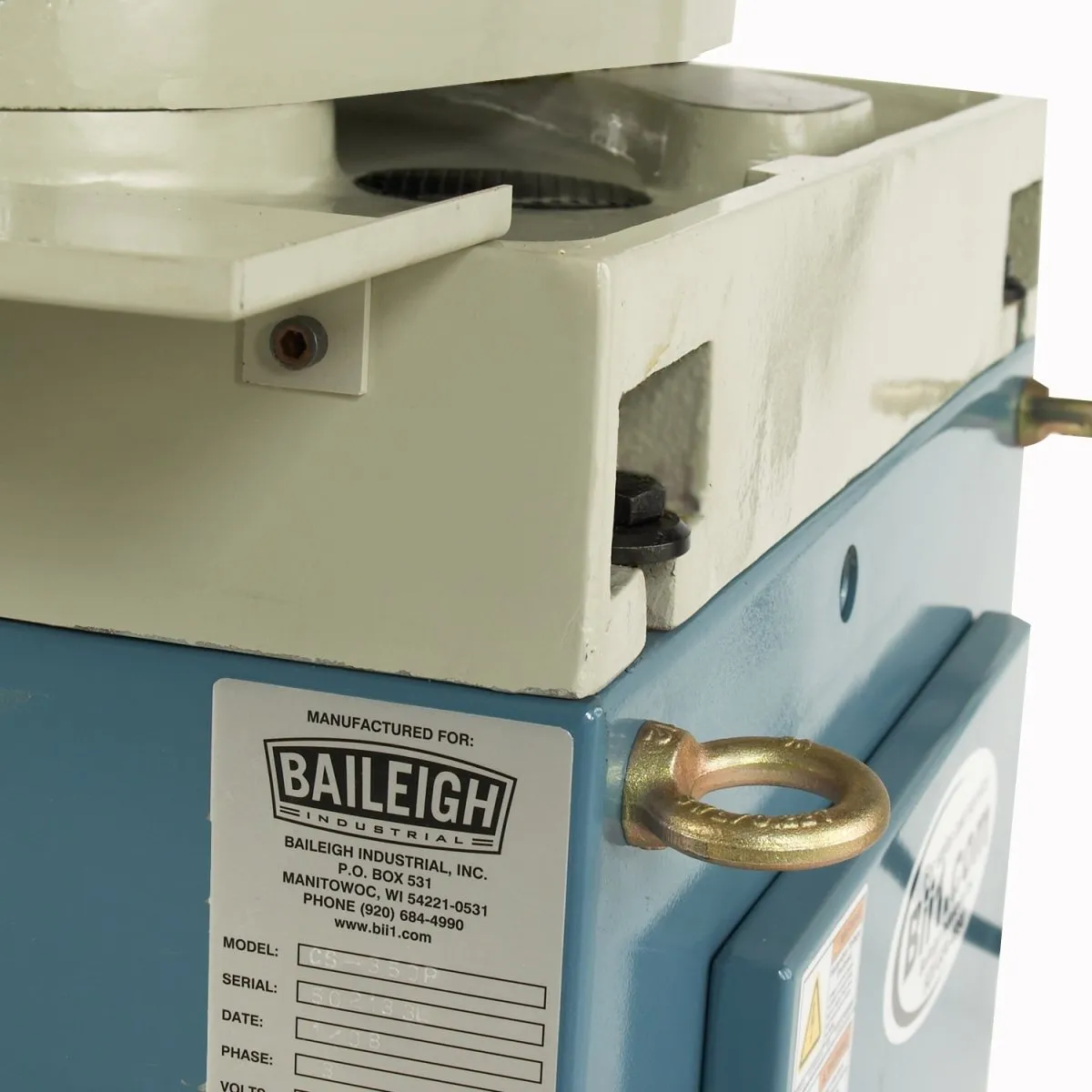

- Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably.
- Heavy molded steel stand brings the saw up to a comfortable cutting height.

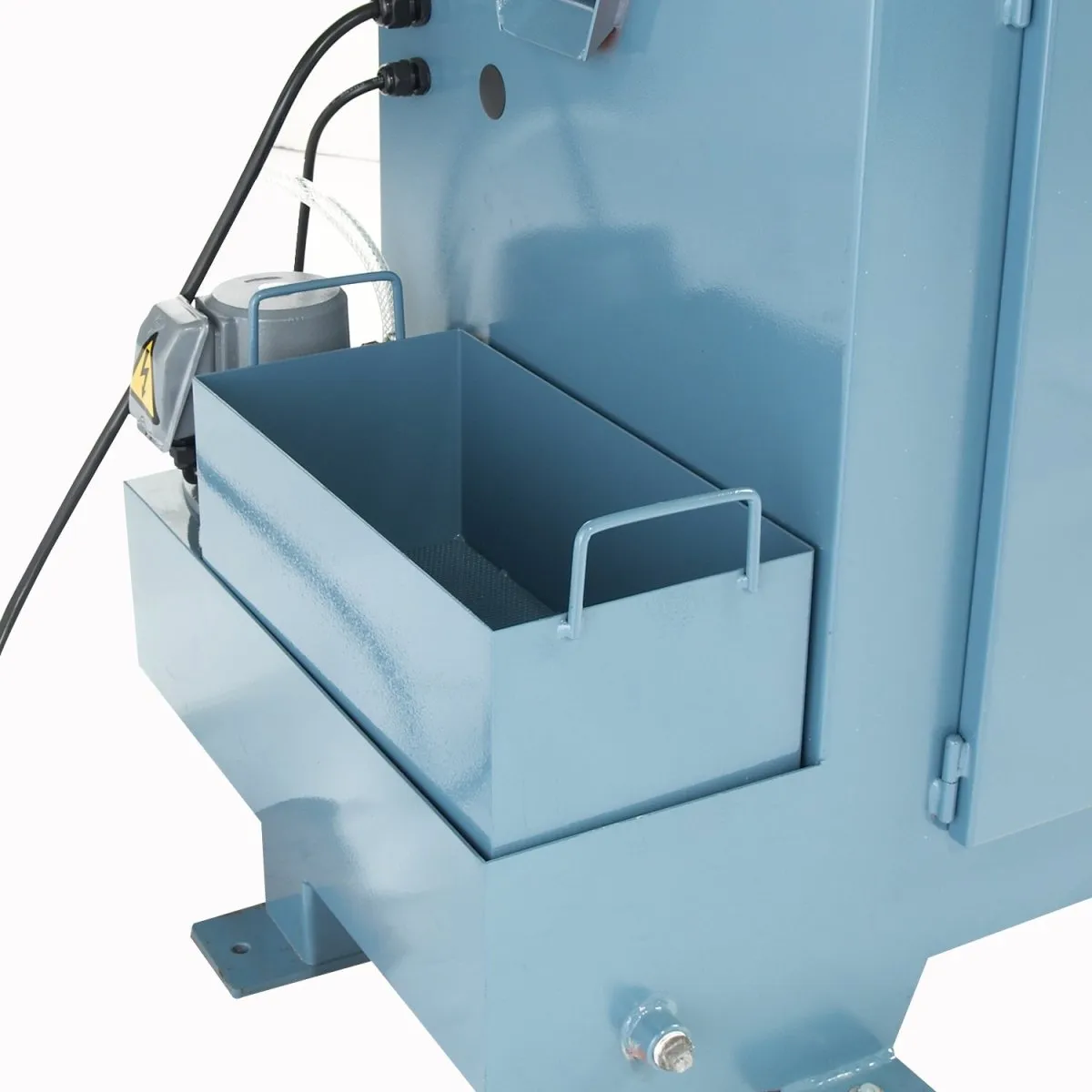

- Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality.
- Coolant system lubricates the blade, reducing strain on the operator.
- Replacement parts are in stock for quick deliveries.
Recommended for:
- Marine rails
- Playground equipment
- Hand railings
- Various chassis applications
- Other fabrication cutting jobs
| Item Number | CS-350M |
|---|---|
| Operation | Manual |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 1.575" |
| Square Tube at 45° | 2.953" x 2.953" |
| Round Tube at 45° | 2.953" |
| Rectangle Tube at 45° | 2.953" x 2.362" |
| Round Solid at 90° | 2.362" |
| Rectangle Tube at 90° | 4.25" x 3.5" |
| Square Tube at 90° | 4.25" x 4.25" |
| Round Tube at 90° | 4.331" |
| Coolant System | Yes |
| Slotting Capable | Yes, Left and Right |
| Vice Style | Dual Action, Self Centering |
| Max. Vice Opening | 6.5" |
| Head Style | Pivot |
| Arbor Size | 1.26" |
| Motor | 4.0 / 3.0 hp |
| Blade Speed | Two Speeds, 26 / 52 (rpm) |
| Power | 220V / 3-phase |
| Shipping Weight | 795lbs |
| Shipping Dimensions (Inches) | 60x44x77 |
* specifications subject to change without notice.
